A Short Introduction to LVM and JFS

By Michal Necasek ©November 2000 References on LVM and JFS: AIX Logical Volume Manager from A to Z: Introduction and concepts, IBM Redbook, SG24-5432-00. Available from http://www.redbooks.ibm.com/ OS/2 WSeB Command Reference (CMDREF.INF on WSeB) Quick Beginnings: Installing OS/2 Warp Server for e-business (A3AA1MST.INF on WSeB) OpenJFS sources at ftp://ftp.netlabs.org/pub/snapshots/openjfs/ .

Basic concepts

First off, I'll finally explain what those acronyms are: LVM stands for Logical Volume Manager and JFS is a Journaled File System. Not much clearer, is it? It will be later - I hope.

LVM and JFS didn't originate on OS/2. They were created for AIX, IBM's high-end Unix clone running on IBM's RS/6000 hardware. For the users that means that all the really nasty bugs were ironed out long ago.

The role of LVM is to present a simple logical view of underlying physical storage space, ie. harddrive(s). LVM manages individual physical disks - or to be more precise, the individual partitions present on them (for a short glossary of terms, look at the end of the article). LVM hides the numbers, size and location of physical partitions from users. Instead it presents the concept of logical volume. A logical volume may correspond to a physical partition (but that obviously almost defeats the purpose of LVM) but it doesn't have to. One volume may be composed of several partitions located on multiple physical disks. Not only that, the volumes can even be extended (not shrunk - people usually want more space, not less). They can even be extended while the OS is running and the filesystem is being accessed! Of course, most home and SOHO users don't have the hardware required for this.

The more experienced readers are now probably wondering how 'traditional' file systems like FAT or HPFS could be extended at runtime. The answer is, they can't. To take full advantage of LVM, it is necessary to use a filesystem designed for it. This file system is of course JFS. JFS is not really tied to LVM; both LVM and JFS can exist separately. But only when working in concert both can reach their full potential.

JFS volume structure

• capacity - JFS allows much larger file and volume sizes than HPFS. Basically JFS is a 64-bit file system while HPFS structures are at most 32 bits large.

• recovery - thanks to the journaling techniques employed by JFS (described in more detail later), CHKDSK times for JFS are significantly faster than for equivalent HPFS volumes. Roughly speaking, where HPFS checkdisk after a crash takes minutes, JFS takes seconds.


• the superblock

• the i-nodes

• the data blocks

• the allocation groups


The entire file system space is divided into logical blocks that contain file or directory data. For JFS, the logical blocks are always 4096 bytes (4K) in size, but can be optionally subdivided into smaller fragments (512, 1024 or 2048 bytes).

An i-node is a logical entity that contains information about a file or directory. There is a 1:1 relationship between i-nodes and files/directories. An i-node contains file type, access permissions, user/group ID (UID/GID - unused on OS/2), access times and points to actual logical blocks where file contents are stored. The maximum file size allowed in JFS is 2TB (HPFS and FAT allow 2GB max). It should be noted that the number of i-nodes is fixed. It is determined at file system creation (FORMAT) time and depends on fragment size (which is user selectable). In theory users could run out of i-nodes, meaning that they would be unable to create more files even if there was enough free space. In practice this is extremely rare.

Fragments were already briefly mentioned in the discussion of logical blocks. The JFS logical block size is fixed at 4K. This is a reasonable default but it means that the file system cannot allocate less than 4K for file storage. If a file system stores large amounts of small files (< 2K), the disk space waste becomes significant. We've all got to know and hate this problem from FAT (cluster size of 32K leads to massive waste of space, in some cases over 50%). JFS attacks this by allowing fragmentation of logical blocks into smaller units, as small as 512 bytes (this is sector size on harddrives and it is not possible to read or write less than 512 bytes from/to disk). However users should be careful because fragmentation incurs additional overhead and hence slows down disk access. I would recommend using fragments smaller than 4K only when the users know for sure that they will store very large amounts of small files on the file system.

The entire JFS volume space is subdivided into allocation groups. Each allocation group contains i-nodes and data blocks. This enables the file system to store i-nodes and their associated data in physical proximity (HPFS uses a very similar technique). The allocation group size varies from 8MB to 64MB and depends on fragment size and number of fragments it contains.

Journaling

JFS uses a special log device to implement circular journal. On AIX, several JFS volumes can share single log device. I'm not sure this is possible on OS/2, I believe each JFS volume (corresponding to a drive letter) has its own 'inline' log located inside the JFS volume - its size is  selectable at FORMAT time.

It is important to note that JFS does not log (or journal) everything. It only logs all changes to file system meta-data. Simply speaking, the log contains a record of changes to everything in the file system except actual file data, ie. changes to the superblock, i-nodes, directories and allocation structures. It is clear that there must be some overhead here and indeed, performance may suffer when applications are doing lots of synchronous (uncached) I/O or creating and/or deleting many files in short amount of time. The performance loss is however not noticeable in most cases and is well worth the increased security.

The log (or journal) occupies a dedicated area on disk and is written to immediately when any meta-data change occurs. When the disk becomes idle, the actual file system structure is updated according to the log. After a crash, all it usually takes to restore the file system to full consistency is replaying the log; i.e. performing the recorded transactions. Of course, if a process was in the middle of writing a file when the system crashed or power died, the file could be inconsistent (the app might not be able to read it again),  but you will not lose this file nor other files, as is often the case with other file systems.

OS/2 considerations

LVM

FDISK.COM has been replaced by LVM.EXE and FDISKPM.EXE has been
replaced by LVMGUI.CMD.  Please use one of these utilities.

It should be noted here that LVMGUI is a GUI app (as the name implies) and requires Java, while LVM is a VIO app and can be run from a command line boot. It looks and feels similar to FDISK, but it presents two views: logical and physical. FDISK didn't differentiate between the two. These views corresponds to the concepts described at the beginning of this article. Basically the physical view shows physical disks and lets users manage partitions while logical view presents volumes. One important concept must be introduced here, and that is a compatibility volume.  A compatibility volume corresponds to old FDISK partitions. During WSeB installation, the installer automatically converts all existing partitions to compatibility volumes. This conversion technically means that the installer writes a special block of LVM data to the sector following the partition table. OSes other than WSeB won't see any difference at all. It is however necessary to manage all partitions/volumes exclusively with LVM after this conversion.

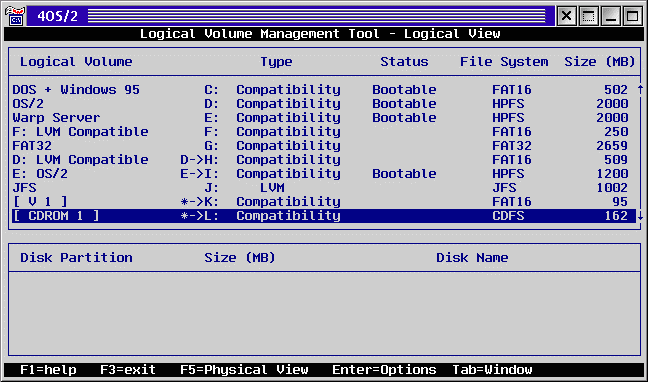

I've captured several screenshots of LVM and LVMGUI to give users unacquainted with LVM some idea of what they can expect. First, there's the logical view of LVM:

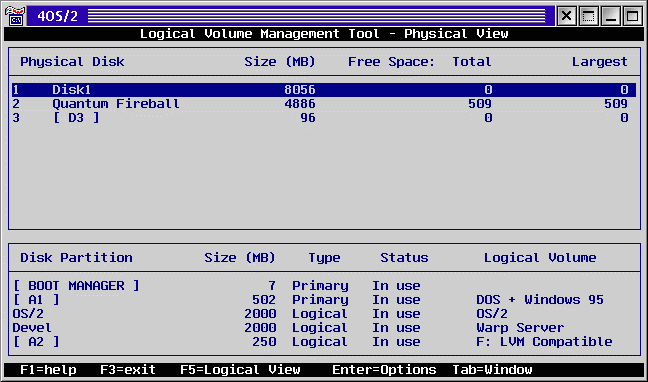

Now there's the physical view of the same system.

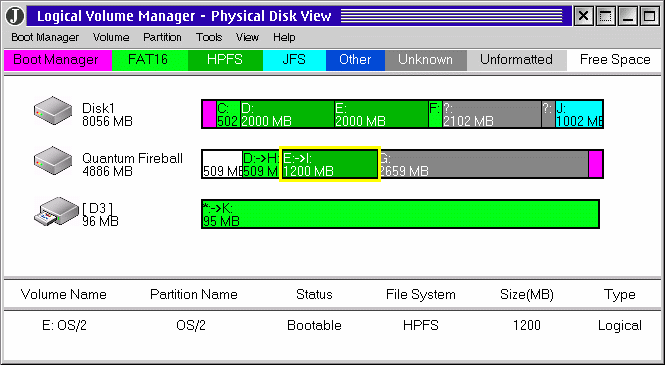

And finally a glance at LVMGUI. It looks pretty cool but takes ages to start. Personally I prefer the VIO version. Disk 3 is a ZIP-100 by the way and G: is a FAT32 partition.



All FAT, HPFS, FAT32 etc. partitions can reside on either compatibility or LVM volumes, however other OSes will only be able to access them on compatibility volumes.  JFS on the other hand must be created on LVM volumes. Those were already described above and enjoy all the flexibility of LVM, such as spanning multiple physical disks or online expansion.

Each volume, compatibility or LVM, represents a single drive letter on an OS/2 system. LVM however is significantly more flexible than FDISK because the drive letters are not assigned by a fixed algorithm. Instead, users can assign arbitrary drive letters to volumes. The drive letters can even be changed at runtime, but users have to understand the dangers before doing that. If you reassign the drive letter of the boot volume, it doesn't require a genius to understand that a system crash will be the most likely result.

JFS

1) JFS stores file and directory names in Unicode. This allows JFS to always maintain proper sort order, regardless of active codepage.
2) This is not a permanent limitation. Only no one wrote a JFS micro- and mini-IFS yet.

It might perhaps interest some users that JFS also seems to have built-in support for DASD limits. I have however never tried to use this feature. DASD limits, aka Directory Limits feature of LAN Server allows administrators to control how much space a directory can take, effectively enabling them to limit disk space usage of users. Previously this feature only worked on HPFS386 volumes. Obviously this is of no use to home users who have all their disk space for themselves but it can be very useful for system administrators.

JFS Utilities

• DEFRAGFS - can be used to defragment and reorganize a JFS volume. It is similar in spirit to equivalent FAT or HPFS utilities. It should be noted that just like HPFS, JFS tries not to fragment files. However especially on nearly full volumes, this is not always possible. In addition to defragmenting files, DEFRAGFS will try to rearrange internal JFS structures by placing certain pieces of data physically close to each other to speed up disk access. DEFRAGFS is designed to be run in the background.

• EXTENDFS - after enlarging a LVM volume, this utility must be used to tell the JFS file system that it should take up all the extra space now available.

• CACHEJFS - not documented in Command Reference, this utility can be used to query the settings of the JFS cache and set its lazy writer parameters.

• CHKLGJFS - again undocumented. This is a diagnostic tool and will show a formatted log of the last (or one before last) checkdisk process. Not very useful to normal users.


• LOGDUMP - as the name suggests, this tool dumps formatted contents of the current JFS log (journal) to a file.

• CSTATS - lists current statistics of the JFS cache.

• XPEEK - perhaps the most useful of the bunch, this one is the closest thing to a JFS disk editor I've seen. This utility lets users dump and optionally modify various internal JFS structures. It has a very crude interface but it worked for me. Needless to say, this utility is extremely dangerous and you can easily destroy your data if you don't know exactly what you're doing.


Conclusion

Parting note: Everything said here about WSeB will equally apply to eCS.

Glossary of Terms:

• Partition - a portion of physical hard disk space. A hard disk may contain one or more partitions. Partitions are defined by PC BIOS and described by partition tables stored on a harddrive. Every PC OS understands partitions.

• Volume - a logical concept which hides the physical organization of storage space. A compatibility volume directly corresponds to a partition while LVM volume may span more than one partition on one or more physical disks. A volume is seen by users as a single drive letter. Only WSeB and eCS understand LVM volumes.

• DASD - Direct Access Storage Device. A term often used by IBM instead of 'hard disk' to confuse mere mortals.
